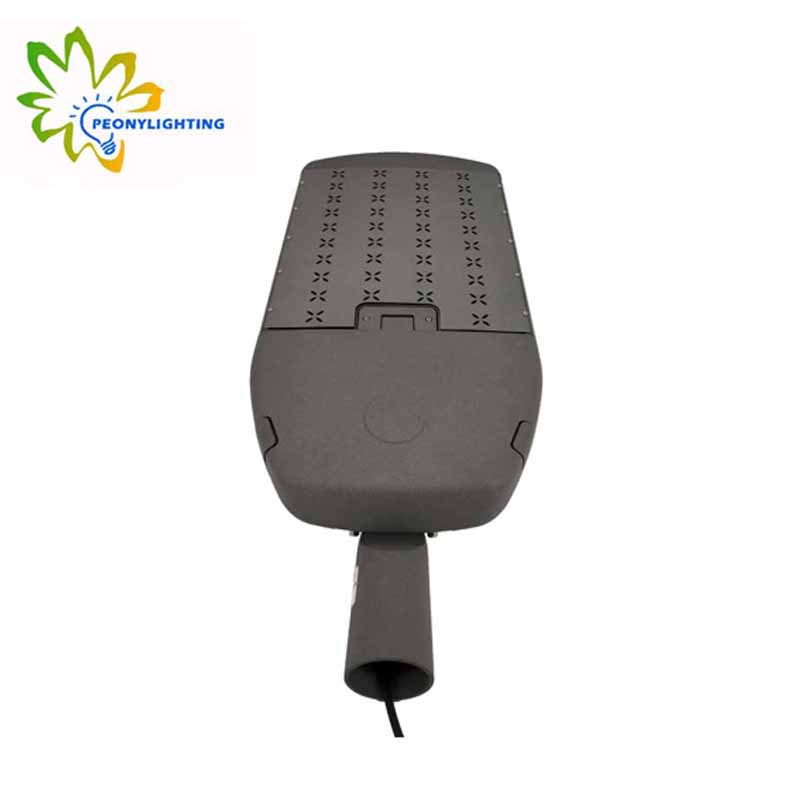

led street light(PL-LD-068)

LED Street light  Specifications

Model

PL-LD-068-100W

PL-LD-068-150W

PL-LD-068-200W

PL-LD-068-250W

Input Voltage

100-305 V AC

Power

100W

150W

200W

250W

Size(mm)

545*356*115mm

625*356*115mm

705*356*115mm

785*356*115mm

LED chip

Lumileds 3030SMD

CRI

Ra>70/80

Power Factor

>0.95

Light efficiency

140-150LM/

Beam angle

145*60°

LED driver brand

SOSEN, Meanwell driver ELG/HLG series

Surge protection

6KV/10KV/20KV as customers' rerquirement

IP&IK

IP66 &IK10

Control

Photocell ,0-10V;dimming range;DALI

Housing material

Excellent Aluminum +Acylic lens

Work temperature

-50°C ~ +50°C

Lifespan

50000 hours

Certificates

CE ROHS SAA CB  ENEC IK10 IP66  LM80 LM79 TM21

warranty

5 -8years
