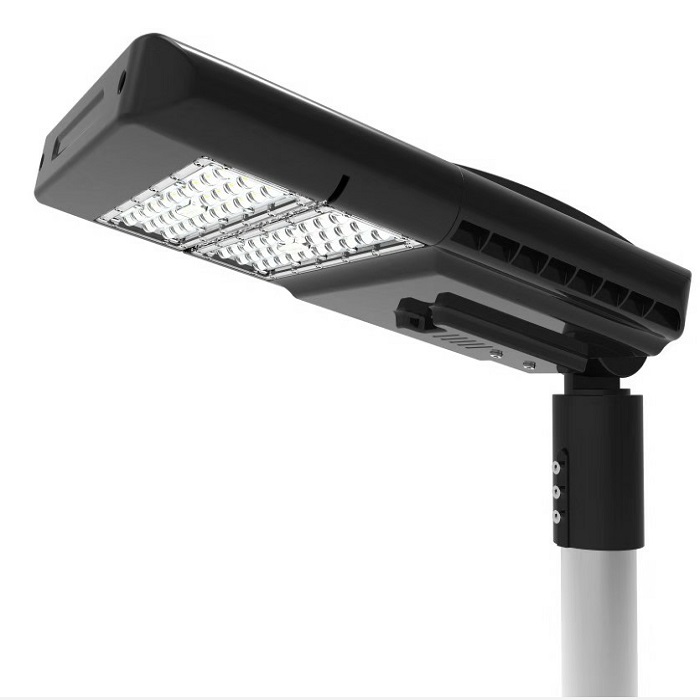

led street light(PL-LD-066)

Specifications

Model

PL-LD-066

PL-LD-066

PL-LD-066

PL-LD-066

Input Voltage

90-305 V AC

Power

50W 60W

80W 100W 120W

150W 180W

200W 240W

Net weight(kg)

5.5

5.82

8.05

8.80

Size(mm)

395*320*107mm

481*320*107mm

567*320*107mm

653*320*107mm

LED chip

Lumileds 3030SMD

CRI

Ra>70/80

Power Factor

>0.95

Light efficiency

150-160LM/W

Beam angle

150*75°

LED driver brand

Sosen/ Meanwell driver  series

Surge protection

10KV/20KV as customers' rerquirement

Waterproof

IP66

Housing material

Die-cast Excellent Aluminum +Acylic lens

Work temperature

-50°C ~ +50°C

Lifespan

50000 hours

Certificates

ENEC CB SAA CE ROHS IK10 IP66

warranty

5 -8years
