  • Product description: Good Quality SMD4014 Chips 600*600mm 36w/40wLED Panel Light
  • INQUIRY

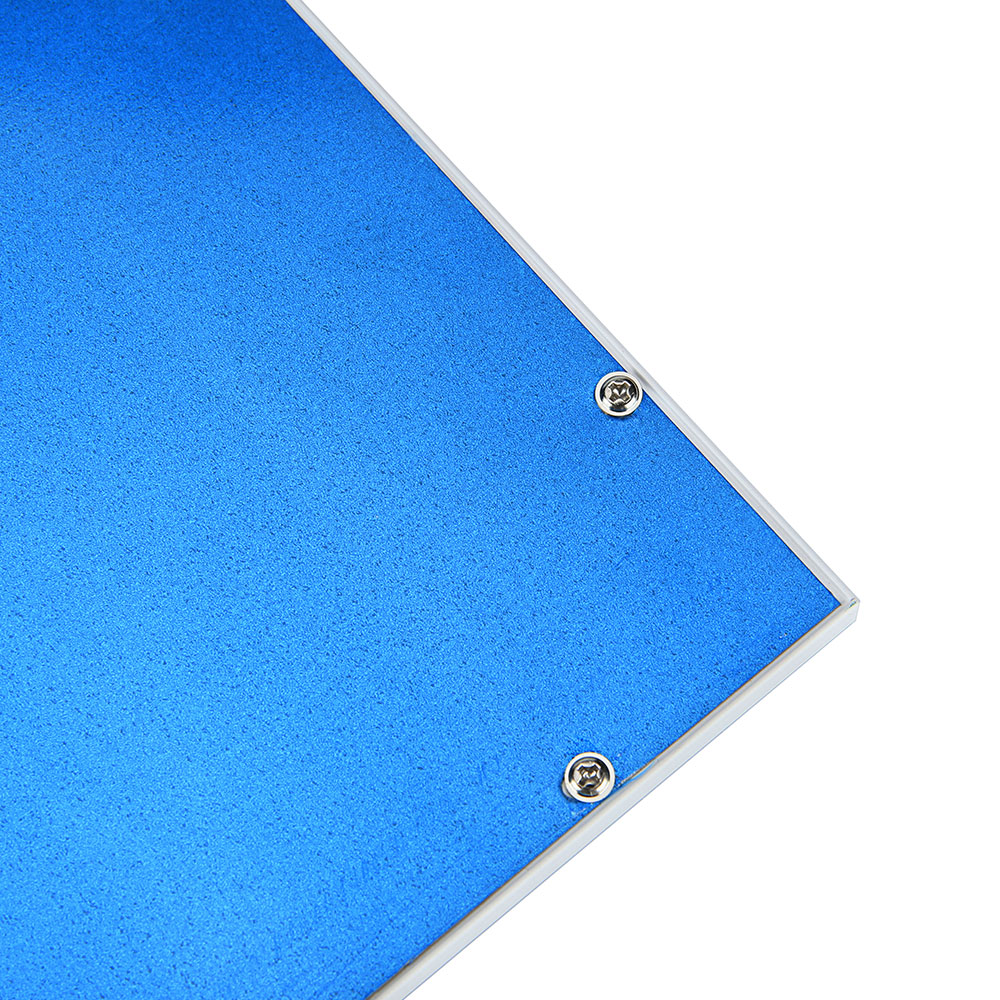

Good Quality SMD4014 Chips 600*600mm 36w/40wLED Panel Light



Features:
1.Usage imported chips 3030smd as the source of light, with a unique lighting design made of multiple
chips integrated in a single module. Based on a selection of excellent imported semiconductor chips, it has high thermal conductivity, low luminous decay, pure colors, no heavy shade etc.
2.Unique cooling body design combined with perfect driver box to help heat conduction and diffusion, this reduces efficiently the temperature of the lamp body and so provides to the LED and its power supply a longer lifespan.
3.Sandblasting process and anodic oxidation surface treatment applied to the cooling body providing to the lamp an elegant and compact overall structure.
4.Environmentally friendly, it contains no lead, no mercury or any other elements that may harm the environment.
5.High color rendering level that shows true colors of things to people. Several colors are also available to meet specific requirements, delivering different kinds of atmosphere, reducing the depressive mood from traditional lamps with uneven color temperatures, improving work efficiency with better visual comfort.
6.Advanced constant current and voltage control techniques, wide power adaptation coverage to fit all countries specificities, management of electrical unstable factors with a power grid and noise pollution with ballast, high lighting stability delivered avoiding unnecessary additional work effort for the eyes and thus preventing from eyestrain.
7.Excellent decoration integration, unique surface treatment technology, modern design, easy installation, simple dismount, wide range of applications.

No

Parameter

01

Szie

595*595*12mm

02

Input Voltage

AC 100-240V

03

Working Voltage

≤38V

04

Power

□36W  □48W  □54W  □72W

05

Luminous

□36W 3400lm±5% □48W 4320lm±5%

□54W 4860lm±5% □72W 6480lm±5%

06

Power Efficiency

□36W 70-80 lm/w                □48W 90lm/w±5%

□54W 90lm/w±5% □72W 90lm/w±5%

07

Color

Warm/Natural/Cool White

08

Color Temp

□WW / Warm White 2800-3200K □NW / Natural White 4000-4500K
□W / White 5000-5500K □CW / Cool White 6000-6500K

09

CRI

≥80Ra

10

LED Qty

2835

□36W 192 PCS  □48W 240 PCS

□54W 288 PCS  □72W 384 PCS

11

LED Type

□HONGLITRONIC 2835 □LumenMax 2835

12

Life Span

50000 Hours

13

Operating Temp

-20ºC —  50ºC

14

Storage Temp

-20ºC —  60ºC

15

Net Weight

3.9 Kg

16

Gross Weight

4.5 Kg

17

IP

IP 40
