LED high bay light

  • led ufo high bay light (PL-UFO-027)
  • led ufo high bay light (PL-UFO-027)
  • led ufo high bay light (PL-UFO-027)
  • led ufo high bay light (PL-UFO-027)
  • led ufo high bay light (PL-UFO-027)
  • led ufo high bay light (PL-UFO-027)
led ufo high bay light (PL-UFO-027)led ufo high bay light (PL-UFO-027)led ufo high bay light (PL-UFO-027)led ufo high bay light (PL-UFO-027)led ufo high bay light (PL-UFO-027)led ufo high bay light (PL-UFO-027)

led ufo high bay light (PL-UFO-027)

  • ufo high bay light
  • led low bay light
  • high bay light
  • led high bay light
  • Product description: 60/90degrees Beam Angle 140lm/W UFO LED Highbay Light, UFO LED Industrial Lighting, LED Industrial High Bay Lighting
  • INQUIRY

60/90degrees Beam Angle 140lm/W UFO LED Highbay Light, UFO LED Industrial Lighting, LED Industrial High Bay Lighting


Features

  • Unique designed UFO shape , lighter and smaller
  • Nichia 3030 & Lumileds  3030 , Ra> 80; LM80 standard
  • Luminous efficiency: 110-125 lm/w
  • Meanwell HBG ELG HLG Series led driver
  • Configurable Smart Dimming
  • Certified product : ETL ; DLC ; SAA ; TUV-CE ; CB
  • Glass cover or PC convex cover
  • Wide aluminum plate design, heat dissipation fast and evenly
  • Ideal mounting height: 8-15 m
  • Angle for flexible bracket : 30°, 60°, 90°, 120°, 150° .
  • Installation: Rack mounting & Hook hanging
  • Working temperature: -30°C ~ + 45°C
  • IP65 protection level

Product specs

Model PL-UFO-027-100W PL-UFO-027-150W PL-UFO-027-200W
Power 100W 150W 200W

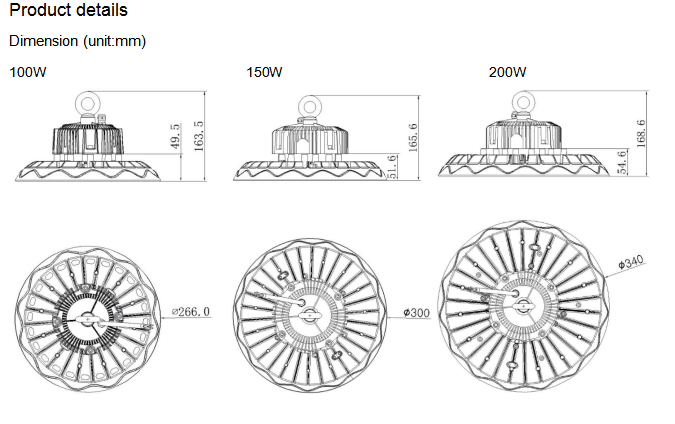

Dimension Φ266X163.5mm Φ300X165.6mm Φ340X168.6mm
Luminous Flux 140lm/w±5%
LED Source 120PCS Lumileds 2835 200PCS Lumileds2835 240PCS Lumileds 2835
Input Voltage AC100-277V
Frequency Range 50~60Hz
Total Harmonic Distortion <20%  (Typical : 10%)
Color Temperature 2700-6500K
Color Rendering Index CRI>70/80
IP Rating IP65
Beam Angle 60°/90°/120°
Optical Transmittance >97%
Housing Color Black
Working Life >50,000 hours
Warranty 5 years
Working Environment -30ºC~+50ºC, 10%~90% RH
Body & Shade Material Die-casting Aluminum housing & Annular lens or Glass
Where Can Use Warehouse; industrial production workshop; pavilion; stadium; the train station; shopping malls; gas stations and other indoor lighting
