Features:
1.Usage of a single high power Lumileds 3030smd as the source of light, with a unique lighting design made of multiple
chips integrated in a single module. Based on a selection of excellent imported semiconductor chips, it has high thermal conductivity, low luminous decay, pure colors, no heavy shade etc.
2.Unique cooling body design combined with perfect driver box to help heat conduction and diffusion, this reduces efficiently the temperature of the lamp body and so provides to the LED and its power supply a longer lifespan.
3.Sandblasting process and anodic oxidation surface treatment applied to the cooling body providing to the lamp an elegant and compact overall structure.
4.Environmentally friendly, it contains no lead, no mercury or any other elements that may harm the environment.
5.High color rendering level that shows true colors of things to people. Several colors are also available to meet specific requirements, delivering different kinds of atmosphere, reducing the depressive mood from traditional lamps with uneven color temperatures, improving work efficiency with better visual comfort.
6.Advanced constant current and voltage control techniques, wide power adaptation coverage to fit all countries specificities, management of electrical unstable factors with a power grid and noise pollution with ballast, high lighting stability delivered avoiding unnecessary additional work effort for the eyes and thus preventing from eyestrain.
7.Excellent decoration integration, unique surface treatment technology, modern design, easy installation, simple dismount, wide range of applications.
Production Introduction:

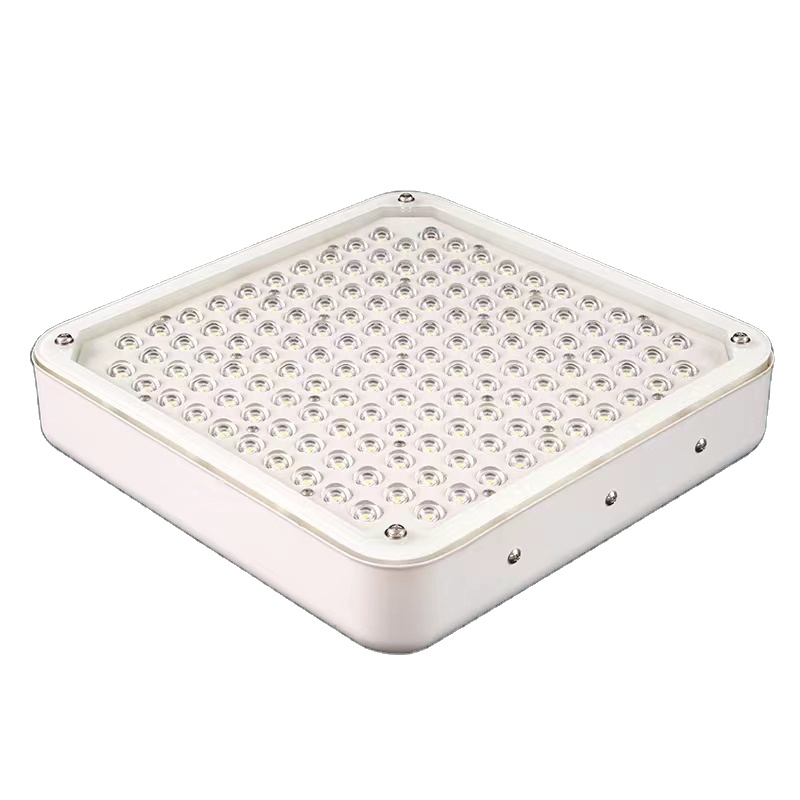

High power LED Flood Light a unique shape, streamlined and stylish lines which integrate perfectly in modern architecture with highly ornamental value
Application:
Apply to gas-station , toll station, production workshop, warehouse, sidewalk, public areas such as school, residential, industrial park lighting.
Technical Parameters
Model |
PL-GS-J-50W |
PL-GS-J-100W |
PL-GS-J-120W |
PL-GS-J-150W |
Power |
50W |
100W |
120W |
150W |
Dimension |
340*340*115mm |
340*340*115mm |
340*340*115mm |
340*340*115mm |
Luminous Flux |
130lm/w±5% |
|||
LED Source |
Lumileds 3030
|
|||
Input Voltage |
AC100~277V |
|||
Frequency Range |
50~60Hz |
|||
Total Harmonic Distortion |
<20% (Typical : 10%) |
|||
Color Temperature |
1800K 3000K 4000K 5000K 5700K 6500K |
|||
Color Rendering Index |
CRI>70/80 |
|||
IP&IK Rating |
IP67 IK10 |
|||
Beam Angle |
30°/60°/90°/60*90°/90*120°/70*145° |
|||
Optical Transmittance |
>97% |
|||
Housing Color |
White |
|||
Working Life |
>50,000 hours |
|||
Warranty |
5 years |
|||
Working Environment |
-30ºC~+50ºC, 10%~90% RH |
|||
Body & Shade Material |
Aluminum housing & Annular lens |
|||
Where Can Use |
gas-station , toll station, production workshop, warehouse, industrial park lighting.
|
