LED street light

led street light(PL-LD-069)

led street light
led street lamp
led road light
led outdoor light
Product description: Outdoor Adjustable Cheap LED Street Light with ENEC CB SAA Ce& RoHS Approva
INQUIRY

Outdoor Adjustable Cheap LED Street Light with ENEC CB SAA Ce& RoHS Approva

Key Features

1).Adopting high-power CREE 3030SMD as light source. Energy-saving, environment protecting and long life.

2). 5mm toughened transparent glass, high temperature resisting, easy for lights penetration, transmittance as hight as 92%.

3).The radiator adopts Aluminium alloy with high thermal coefficient, Lamp surface adopts oxidation technology, corrosion-resistance and ensure the radiating.

4).Constant current supply, good stabilize and high security.

5).Energy sawing up to 80%.

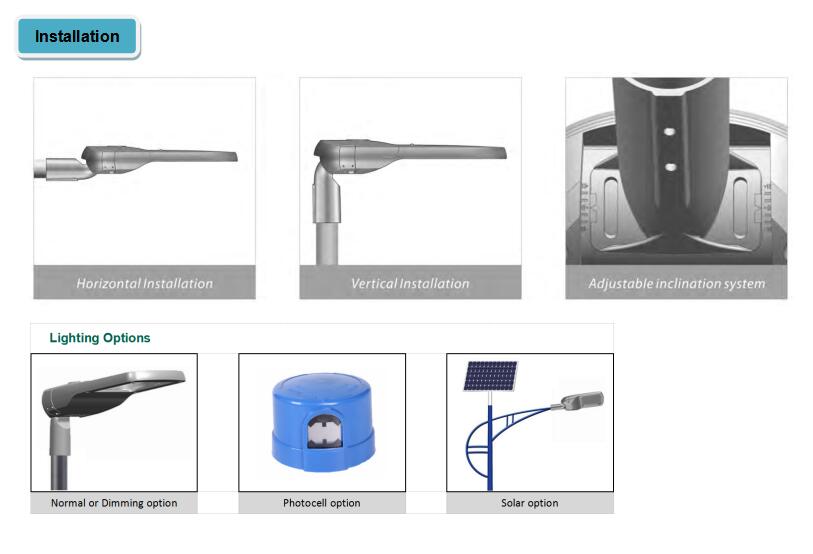

6).Good-Looking shape, easy installation

7).Applicable for the expressway, road in down town, over bridge, port, factory lighting and so on..

8).Lampshade material: Die cast aluminum housing, Toughened safety glass, painting coating.

9).The metal part which is between pole and street light is designed as original pole size.

Technical parameter

LED Street light Specifications
Model	PL-LD-069	PL-LD-069	PL-LD-069
Input Voltage	100-305 V AC
Power	30W 40W 50W 60W 70W 80W 90W 100W 120W	15W 180W 200W	240W 300W
Size(mm)	622320119mm	720320119mm	902320119mm
LED chip	Lumileds 3030SMD
CRI	Ra>70/80
Power Factor	>0.95
Light efficiency	145LM/W±5%
Beam angle	T2 T3 T4 T5
LED driver brand	Inventronics, Meanwell driver ELG/HLG series
Surge protection	6KV/10KV/20KV as customers' rerquirement
Waterproof and IK	IP66 IK10
Housing material	Die-cast Aluminum +Steel glass
Work temperature	-50°C ~ +50°C
Lifespan	50000 hours
warranty	5 -8years
