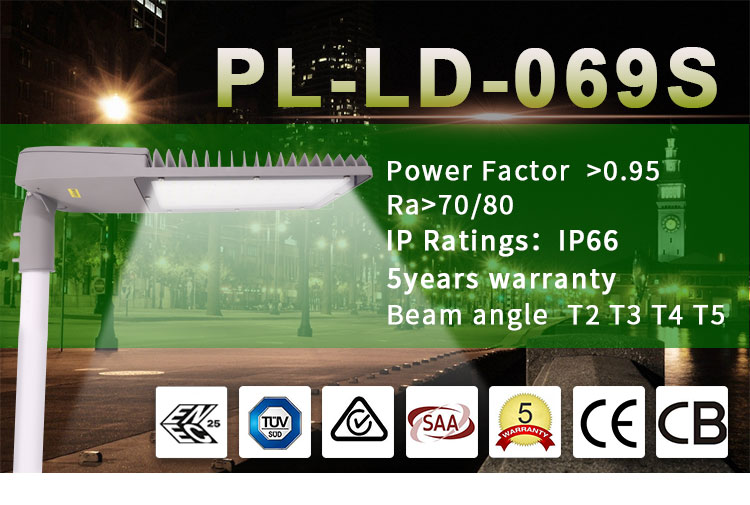

  • Product description: Outdoor Adjustable Cheap LED Street Light with ENEC CB SAA Ce& RoHS Approva
  • INQUIRY

Outdoor Adjustable Cheap LED Street Light with ENEC CB SAA Ce& RoHS Approva



Key Features

1).Adopting high-power CREE 3030SMD  as light source. Energy-saving, environment protecting and long life.

2). 5mm toughened transparent glass, high temperature resisting, easy for lights penetration, transmittance as hight as 92%.

3).The radiator adopts Aluminium alloy with high thermal coefficient, Lamp surface adopts oxidation technology, corrosion-resistance and ensure the radiating.

4).Constant current supply, good stabilize and high security.

5).Energy sawing up to 80%.

6).Good-Looking shape, easy installation

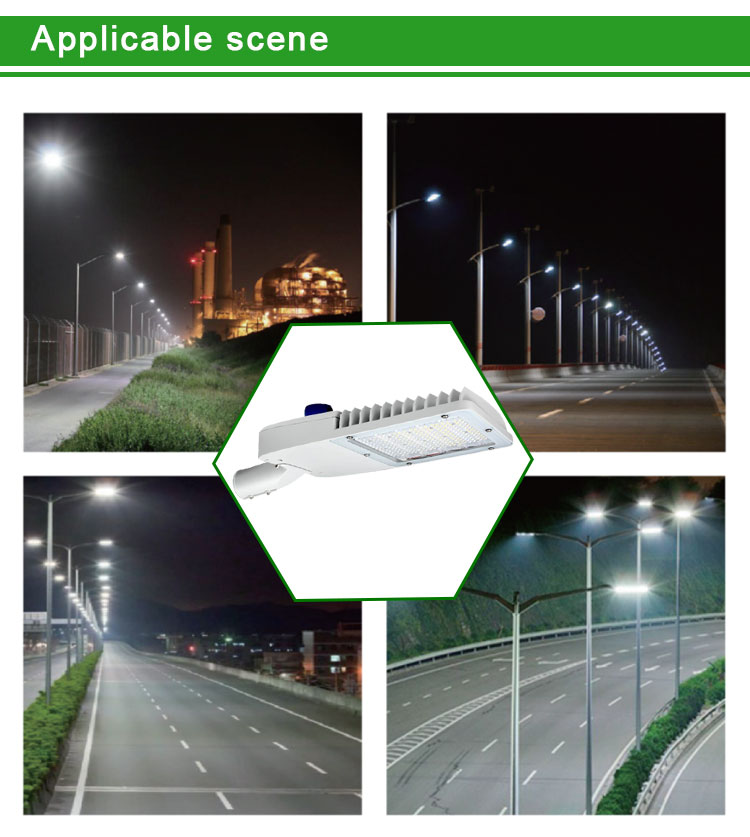

7).Applicable for the expressway, road in down town, over bridge, port, factory lighting and so on..

8).Lampshade material: Die cast aluminum housing, Toughened safety glass, painting coating.

9).The metal part which is between pole and street light is designed as original pole size.

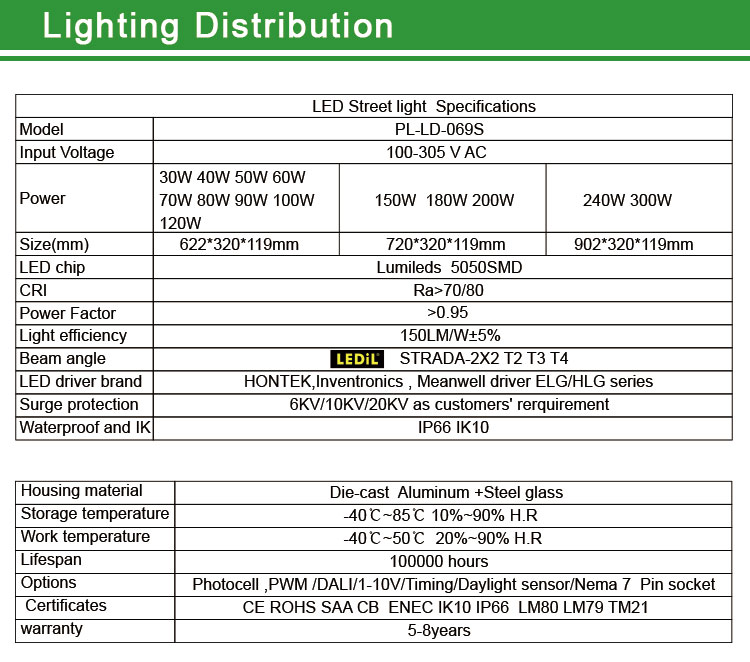

LED Street light  Specifications

Model

PL-LD-069

PL-LD-069

PL-LD-069

Input Voltage

100-305 V AC

Power

30W 40W 50W 60W

70W 80W 90W 100w  120W

150W  180W 200W

240W 300W

Size(mm)

622*320*119mm

720*320*119mm

902*320*119mm

LED chip

Lumileds  3030SMD

CRI

Ra>70/80

Power Factor

>0.95

Light efficiency

145LM/W±5%

Beam angle

T2 T3 T4 T5

LED driver brand

SOSEN, Meanwell driver ELG/HLG series

Surge protection

6KV/10KV/20KV as customers' rerquirement

Waterproof and IK

IP66 IK10

Housing material

Die-cast  Aluminum +Steel glass

Storage temperature

-40℃~85℃ 10%~90% H.R

Work temperature

-40℃~50℃  20%~90% H.R

Lifespan

100000 hours

Options

Photocell ,PWM /DALI/1-10V/Timing/Daylight sensor/Nema 7  Pin socket

Certificates

CE ROHS SAA CB  ENEC IK10 IP66  LM80 LM79 TM21

warranty

5 -8years
