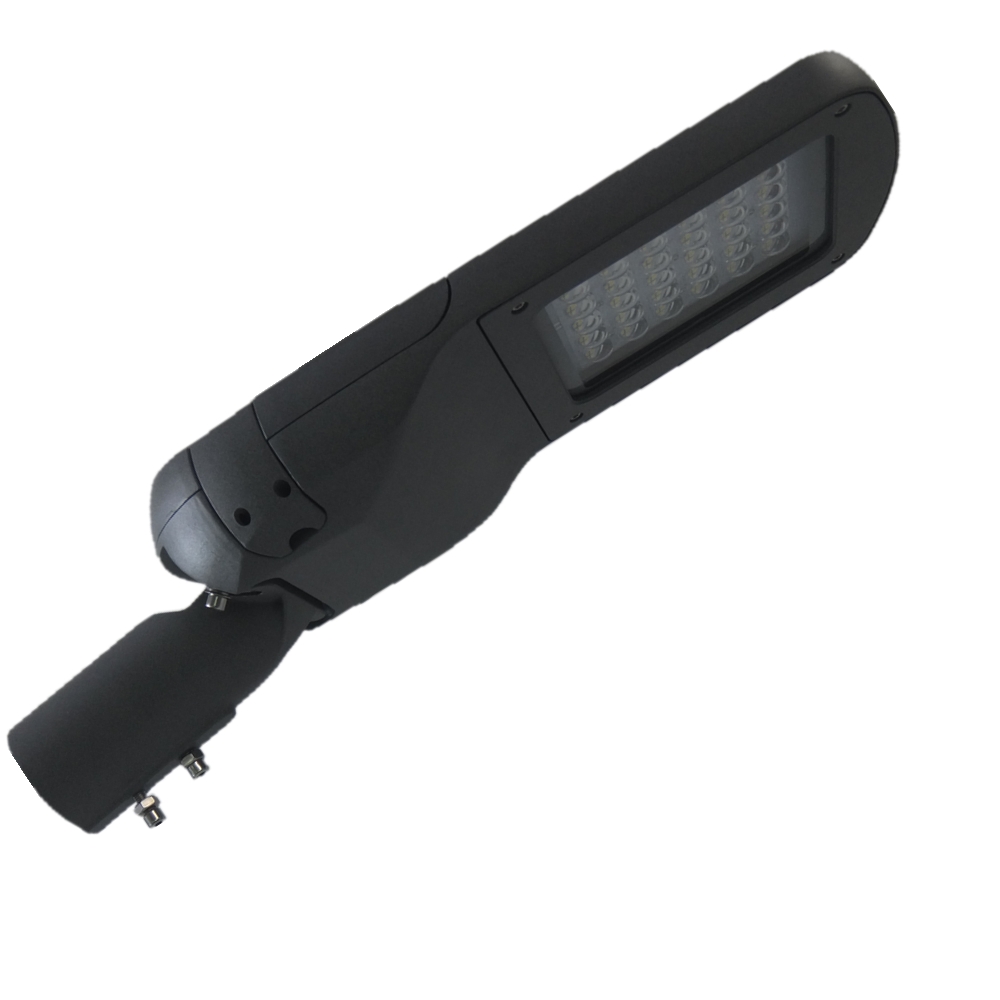

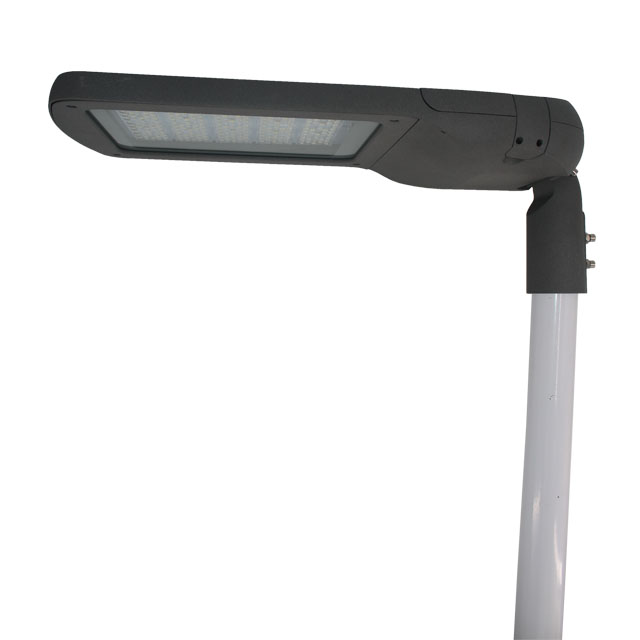

led street light(PL-LD-061)

led street light led road light TUV ENEC CE ROHS SAA CB IRAM TISI approved

PL-LD-061-150W

IP66 ;IK08; 4000 Kelvin; 150 L/W; I class ; Protection 10 kv; CRI 70; Working temperature (-30°C) - (+45°C);  Lamp mounting position  (-5°) - (+15°) ; Efficiency of power supply 90%; Duration of lamp work by L90 B10 standard 100 000 hours; Roasted glass; Dimension: L690*W260*H115 mm; N.W- 6.854KG;CREE XP-G3 White standard Led;

PL-LD-061-115W

IP66 ;IK08; 4000 Kelvin; 150 L/W; I class ; Protection 10 kv; CRI 70; Working temperature (-30°C) - (+45°C); Lamp mounting position  (-5°) - (+15°); Efficiency of power supply 90%; Duration of lamp work by L90 B10 standard 100 000 hours; Roasted glass; Dimension: L690*W260*H115 mm; N.W- 6.824KG; CREE XP-G3 White standard Led;

PL-LD-061-80W

IP66 ;IK08; 4000 Kelvin; 150 L/W; I class ; Protection 10 kv; CRI 70; Working temperature (-30°C) - (+45°C); Lamp mounting position  (-5°) - (+15°); Efficiency of power supply 90%; Duration of lamp work by L90 B10 standard 100 000 hours; Roasted glass; Dimension: L620*W233*H115 mm; N.W- 5.180KG; CREE XP-G3 White standard Led;

PL-LD-061-30W

IP66 ;IK08; 4000 Kelvin; 150 L/W; I class ; Protection 10 kv; CRI 70; Working temperature (-30°C) - (+45°C); Lamp mounting position  (-5°) - (+15°);  Efficiency of power supply 90%; Duration of lamp work by L90 B10 standard 100 000 hours; Roasted glass; Dimension: L570*W200*H115 mm; N.W- 4.150KG;CREE XP-G3 White standard Led;

The diameter of the throat of the all models lamp (fits in the range of 48-60 mm Arm). All models shelf are done with high pressure durable aluminum. The surface of the lamps does not hold water and other substances.

All following models can  be integrated with 0-10 volts. The lamp have a nema 7 pin socket for future management.
