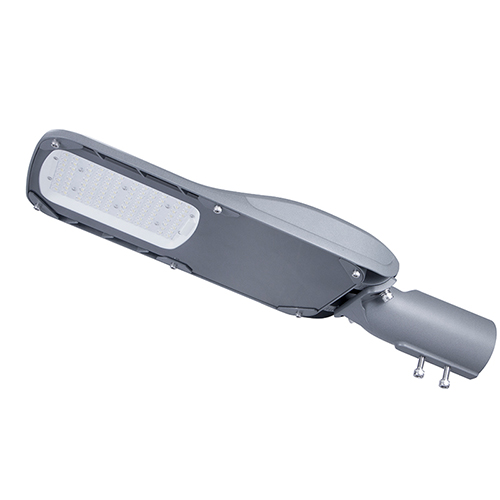

2022 Manufacturer Integrated Outdoor 100 Watt 50w 75w 150w Public Housing Led Street Lights

#ledstreetlight #outdoorlight #highwaylight

#mainroadlight #secondaryroadlight

#walkpathlight #commerciallight #roadlamp

if you don't know the precise type of light your street project needs.

please contact our PEONY Lighting . here we have professional service team address your concerns
Description

1. .Adopting SMD 3030 as light source. Energy-saving, environment protecting and long life.
2. .The radiator adopts Aluminium alloy with high thermal coefficient, Lamp surface adopts oxidation technology, corrosion-resistance and ensure the radiating.
3. .Energy sawing up to 80%.
4. .Good-Looking shape, easy installation.
5. Applicable for the expressway, road in down town, over bridge, port, factory lighting and so on.
6. The metal part which is between pole and street light is designed as original pole size.

Data sheet:

Model	PL-LD-120
Power	30-70W	80-120W	150-180W	200-240W
Dimension	578X200X90mm	612X233X90mm	664X256X90mm	714X310X90mm
Luminous Flux	140lm/w±5%
LED Source	96PCS SMD 3030	144PCS SMD 3030	192PCS SMD 3030	320PCS SMD 3030
Input Voltage	AC100-277V
Frequency Range	50~60Hz
Total Harmonic Distortion	<20%  (Typical : 10%)
Holder	45/52/62/78mm
CCT	1800k (Amber) 3000k 4000k 5000k 5700k 6500k
Color Rendering Index	CRI>70
IP/IK Rating	IP6/IK08
Power Factor	>0.9
Surge protection	6KV/10KV/20KV as customers' rerquirement
Beam Angle	T2/T3/T3/T4
Housing Color	Gray
Body & Shade Material	Die-casting Aluminum housing & lens & Tempered glass
Work temperature	-40ºC~50ºC 20%~90% H.R
Storage temperature	-40ºC~85ºC  10%~90% H.R
Lifespan	(L80B10) 100000 hours
Control mode	Photocell ,1-10V;dimming range;PLC,LoRa,Nema ,DALI
Warranty	5 years
