Product Description

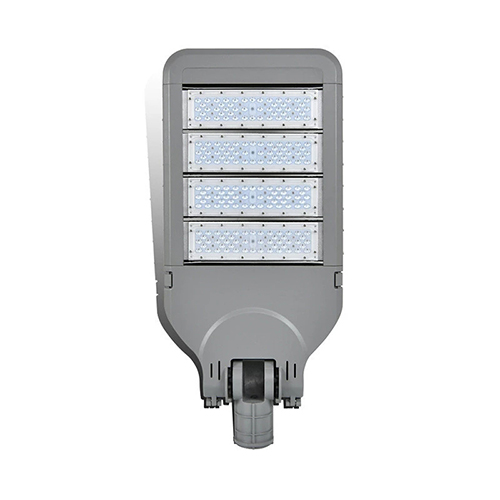

50W 100W 150W 200W 240W 300W high quality with 5years warranty led Outdoor Parking Lot light solar Led Street Light


Key Features

1.Using led modules , lumileds 3030smd. Lamp luminous efficiency can reach more than 130LM/W.

2.Driver box can be opened without tools ,easy to maintain.

3.Installation filling diameter is 60mm.

4.Beautiful appearance and unique design IP66.

Datesheet

Specifications
Model	PL-LD-075
Input Voltage	100-277/305 V AC
Power	50W	100W	150W	200W	250W	300W
Size(mm)	530*350*90	610*350*90	690*350*90	770*350*90	850*350*90	970*350*135
Lumens	7000lm±5%	14000lm±5%	21000lm±5%	28000lm±5%	35000lm±5%	42000lm±5%
LED chip	Lumileds 3030SMD
CRI	Ra>70/80
Power Factor	>0.95
Light efficiency	130LM/W±5%
Beam angle	70x135°
LED driver brand	Inventronics , Meanwell driver
Surge protection	6KV/10KV/20KV as customers' rerquirement
Waterproof and IK	IP66 IK09
Housing material	Die-cast  Aluminum +PC diffuse
Work temperature	-50°C ~ +50°C
Lifespan	50000 hours
Control	Photocell ,0-10V;dimming range;PLC,LoRa,Nema ,DALI
Certificates	CE ROHS SAA CB  ENEC IK10 IP66  LM80 LM79 TM21
warranty	5-8years
